Solar fire lighting
The energy received by the earth from the sun is called the Solar Constant, which describes the effect that every 1 m2 of planet earth, facing the sun rays in a 90-degree angle (directly overhead) will receive 1375 Watts (Joules/sec). 1375 W/m2 of direct sunlight will not be enough to start a fire as this is only 0,1375 W/cm2. Whereas a burning candle turns out about 80 W.
The further the location North or South from the equator – generally spoken – is, the more spread-out this 1 m2 area on the equator will become. On the ground, as the mirror is always perpendicular to the sun, this remains unchanged for latitude. Scattering of the sun rays through particles in the atmosphere however will increase.
Sunlight therefore has to be focused, which can be done by parabolic mirrors, or lenses or lens-like objects. Best efficiency in all three types will only be achieved by clean and even surfaces, which will not deflect light in undesirable directions.
Parabolic mirrors for solar fire lighting
Parabolic mirrors reflect the sunlight and concentrate this light at the focal point on the same side of the incoming sunrays. Commercially, this principle is used for so-called ‘Solar Spark’ lighters.

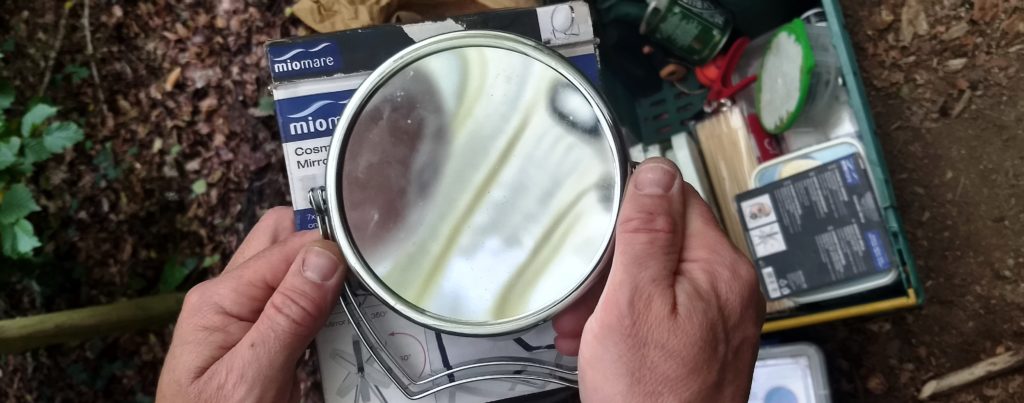

The same principle is also used for cosmetic mirrors. These mirrors are highly recommendable for solar fire lighting due to their relatively large diameter and even surface (which is necessary in order not to distort the face picture). In general, mirrors are more efficient in lighting solar fires, as there is no need for the rays to pass through a denser medium, like glass, which is reducing its efficiency or are subject to the tinder casting a shadow onto the mirror. Their disadvantage however, that parabolic mirrors without central tinder catch at the focal point, have to be held in such a way, that the focal point is always at an angle to the tinder, and therefore distorted.
Lenses for solar fire lighting
Lenses concentrate light on the opposite side of the incoming sun rays. These rays will either be concentrated by optical lenses or Fresnel lenses. Energy output in both types of lenses will depend significantly on the available lens diameter. Disadvantage of lenses is the need for the sunrays to pass through different mediums; their big advantage however is, that the lens can be held strictly perpendicular to the incoming rays for an optimized small focal point.
Lens-like objects for solar fire lighting
Lens-like objects can be a variety of materials or combination of such. Like: Water in a clear plastic bag, or clear ice shaped like a lens, or clear glass bottles or parts of them.
Calculating the power output of a solar lens/mirror
Calculating the approximate power output of a lens or mirror can be done by multiplying the area of the mirror/lens by the solar constant. A mirror with a diameter of let’s say 16 cm, results in a power output of 27,5 W. Calculation is done as follows:
Area = π r2 (squared) = π x (8 cm x 8 cm) = π x 64 cm2 = 201 cm2
Power = 201 cm2 x 0.1375 = 27.5 W
Color of target material for solar fire lighting
Color of target material is critical for success in solar fire lighting. As commonly known, white color will reflect light, whereas black color will absorb it. We want as much absorption as possible, therefore our target material should be as black as possible. In case of using punky wood as a tinder (which is quite light in color), it would be best to rub old charcoal on it. Although charcoal itself would be a good tinder. Or use a black ink pen or board marker.
Whatever is done to darken up the target material, it is always necessary to keep the target material fully dry. It is not an option to bring humidity into the tinder by e.g.: dark soil. Dryness before color! The often-cited example of how easy it is to burn dark paper compared to white paper with solar fire lighting may sometimes mislead the observer, as paper is not a tinder, but only an object of demonstration to show the differences in light absorption and -reflection.
Tinder used for solar fire lighting
That is the most difficult part in solar fire lighting: to find tinder which is producing a smoldering ember! Most materials are just flashing up or burning away fast. But we need something, which forms an ember.
Best materials are:
- Various tree fungi. I experimented with a variety of them, and, when they were really dry, all of them kept an ember
- Tinder layer of horseshoe fungus (Fomes formentarius), which lives mainly on dead beech trees
- Chaga mushroom (Inonotus obliquus). Its outside is black and an unsightly growth on birch trees and inside orange in color.
- Char cloth
- Punky (dry rotting) wood
- Dry dung pellets of ruminants, like hares, deer, a.s.o.
- Common Milkweed (Asclepias syriaca) ovum sheets, which is an invasive plant species in Europe
- Fine coffee grounds
- Pulverized tea from tea bags
All materials have to be completely dry and punky wood, dung pellets and/or coffee grounds should be finely pulverized before use to increase the surface area
Lessons learned about solar fire lighting:
- A cosmetic mirror with a diameter of approximately 16 cm / 6” is considered the best tool for solar fire lighting.
- Solar lighters are also effective for creating a fire when the sun is high in the sky.
- The color of the tinder should be as dark as possible to reduce reflection.
- The goal of solar fire lighting is not to produce an open flame, but rather to create a smoldering ember.
- Tinder material must be completely dry and capable of holding an ember.
